Most PLCs in the industry are programmed by a highly specialized, well-established programming language called  " Ladder Logic ". Ladder Logic language has its strength in handling single bit digital I/O programming, but it is awkward to handle data processing where numerical data needs to be manipulated.

On the other hand, desktop computers are typically programmed by high-level languages such as BASIC , C, PASCAL, C++, Java etc. These powerful programming languages are designed for data processing, but they are not oriented towards flipping single bit digital I/Os.

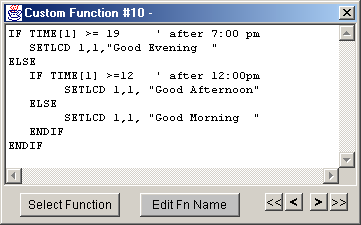

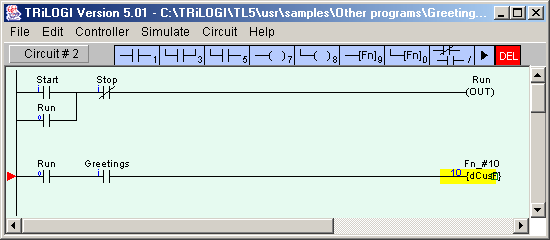

By combining these two most important branches of programming languages into one single, seamless entity, we had invented the industry first " Ladder + BASIC " language that can easily handle sophisticated tasks with just a few lines of codes. We have also developed a family of M-series Super PLCs that are exclusively programmed in Ladder + BASIC language, using our highly acclaimed TRiLOGI PLC programming Editor, Compiler and Simulator software.  The following simple example illustrates how Ladder+BASIC language works in tandem:

To learn more about the TRiLOGI software, please click on one of the following links:

1. TBASIC Components: Statements, Functions and Operators

2. TBASIC Support for Special Inputs and Outputs

           Interfacing Stepper Motors
           PWM Outputs
           High Speed Counter Inputs - Interfacing to Rotary Encoder
           Interrupt Inputs
           Using Pulse Measurement Inputs

3. Application Examples for T100MD PLC and Sample Programs

           Display Alphanumeric Messages on LCD Display -- MDS100
           Motion Control of Stepper Motor
           Activate Events at Scheduled Times
           Automatic Climate Control System
           Closed-Loop PID Control of Heating Process
